AIA-CL300

AIA®-CL300 is the solution to meet your specific needs

The AIA-CL300 is the flexible instrument responding to customers’ needs. Various pathologies can be precisely analysed with the AIA-CL300.

Like all other Tosoh AIA-CL automated immunoassay analysers, the AIA-CL300 utilises the unique CL-AIA Pack twin cup format. With a throughput of up to 30 results per hour, first result within 15 minutes for most assays, this innovative desktop automatic analyser meets the needs from small to large laboratories, to perform routine analysis, cover emergency use, run specific pathologies and esoteric tests. The AIA-CL300 benefits from the excellence and the unique technology of the AIA-CL range which have already made their proof in terms of ease of use, reliability, and analytical performance.

Specifications

Methods
Assay principle  CLEIA
Reagent type    AIA-CL Twin cup
Available IVD reagents   > 50 assays
Test principle     1 CL AIA-PACK® cup = 1 test
Immunochemical determination Entirely inside CL AIA-PACK
Signal detection Substrate (DIFURAT®) + Enhancer
Processing method  Automated continuous random access
Capacity
Time to first result Approx. 15 minutes
Processing capacity Max. 30 tests/hour
Number of analytes per sample Max. 6
Sample volume 5 - 50 μL
Sample pre and post-dilution    Auto (4 to 625x)
Sample pretreatment    Auto
Reagent rack Sample assy Max to 24 cups
Calibration assay Max 30 cups
Washer and diluent 750 mL tank (manual preparation)
Substrate and enhancer Max. 3 cups (11 tests/cup)
Tip rack Max. 96 tips
Power supply input/consumption  100 to 240 V AC, 50/60 Hz / 300 VA
Barcode readers Internal and external (handheld)
Operating environment 15-30 o C, 40-80% R.H., up to 2000m alt.
External communication RS-232C, USBs, RJ45/LAN

The AIA®-CL300 is ideal for:

  • Small, Medium and large hospitals and clinics
  • Reference labs
  • Core labs
  • Possible to use in mirror solutions

This innovative desktop automatic analyser meets the needs from small to large laboratories, to perform routine analysis, cover emergency use, run specific pathologies and esoteric tests. Because the AIA-CL300 requires low sample volume, it is also beneficial for paediatric and geriatric applications

The AIA-CL300 benefits from the excellence and the unique technology of the AIA-CL range which have already made their proof in terms of ease of use, reliability, and analytical performance.

Volume of tests/day

< 150-200 tests per day

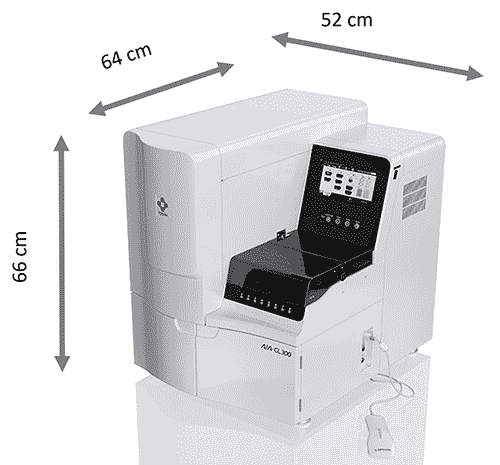

AIA®-CL300 Dimensions

Width                                               52 cm

Depth                                               64 cm

Height                                              66 cm

Weight                                             72 kg (159 lbs)

Dimensions
